DIY Quartz Silent Wall Clock Mechanism Central Movement Kit for

MCDFL DIY Quartz Silent Wall Clock Mechanism Central Movement Kit for Machinery Watch Table Sweep Timepiece Clockwork Long Shaft
This is a big bonus of 2 clock movement kit from MCDFL for you to pick out the style that look best to keep your favorite clocks running at no additional charge.
MCDFL diy clock mechanism for wall hours provides quick and easy fix for your clock, you too can be a clock maker. Save an expensive clock and your old clock is now running again in your house with wonderful memories.
Fit for cross-stitch, three-dimensional embroidery, craft clock, table clock, quartz wall watch and DIY frame-less draw clock, etc.
Good handwork material to make a 3d clock by yourself, perfect DIY clock kit, clock parts accessories, clock accessories.
Specification
Clock Mechanism Case Size: approx. 56 x 56 x 16 mm (2.2 x 2.2 x 0.63 in)
Second Hand Motion: Sweeping
Accuracy Within ± 30 seconds deviation each month (in normal temperature)
Battery: One 1.5V AA Carbon battery (not included)
Please DO NOT USE Alkaline battery, Rechargeable batteries, they will damage the clock movement.
Features:
Good clock replacement:
We have 8 different shaft length clock mechanism for you to choose. It can be a replacement for your broken clock.
Simple style clock movement:
It can match to diverse colors, patterns, shapes clock panel, it will not stand out, good quartz movement will work well. Simple design, easy to use.
Wide application:
You are enable to use it to repair, replace or make a home clock; Applicable to cross-stitch, three-dimensional embroidery, desk clock, craft home clock, frame-less draw clock, clockwork, etc. Perfect DIY clock kit, clock accessories, clock parts accessories, quartz mechanism for clock, silent tools.
Accurate Time Keeping and Quiet Motor
The long shaft clock mechanism silent clockwork offers great accuracy and dependability, equipped with sweeping motion, no ticking and will provide you with a quiet environment.
We Have 8 Different Shaft Length Movements
If you want to replace your old clock movement clockwork, carefully measure the clock movement shaft length. Clock mechanism long shaft can fits more thicker clock dial.
If you still can't confirm which one is right for you. Please refer to our picture, take a photo of shaft part and hands size, we will help you confirm.
Total Shaft Length: 9 mm (0.47 inch)
No Thread
Suitable for: 1 - 2 mm ( 0.04 - 0.08 inch ) thickness clock panel
(Snap In Type Clock Movement, with no thread.
Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook)
Total Shaft Length: 12 mm (0.47 inch)
Thread Length: 6 mm (0.24 inch)
Suitable for: 1 - 2 mm ( 0.04 - 0.08 inch ) thickness clock panel
Total Shaft Length: 15 mm (0.59 inch)
Thread Length: 8 mm (0.32 inch)
Suitable for: 2 - 3 mm ( 0.08 - 0.12 inch ) thickness clock panel
Total Shaft Length: 18 mm (0.71 inch)
Thread Length: 11 mm (0.43 inch)
Suitable for: 3 - 7 mm ( 0.12 - 0.28 inch ) thickness clock panel
Total Shaft Length: 20 mm (0.79 inch)
Thread Length: 13 mm (0.51 inch)
Suitable for: 4 - 8 mm ( 0.16 - 0.32 inch ) thickness clock panel
Total Shaft Length: 22 mm (0.87 inch)
Thread Length: 15 mm (0.59 inch)
Suitable for: 9 - 13 mm ( 0.35 - 0.51 inch ) thickness clock panel
Total Shaft Length: 28 mm (1.1 inch)
Thread Length: 21 mm (0.83 inch)
Suitable for: 12 - 16 mm ( 0.47 - 0.63 inch ) thickness clock panel

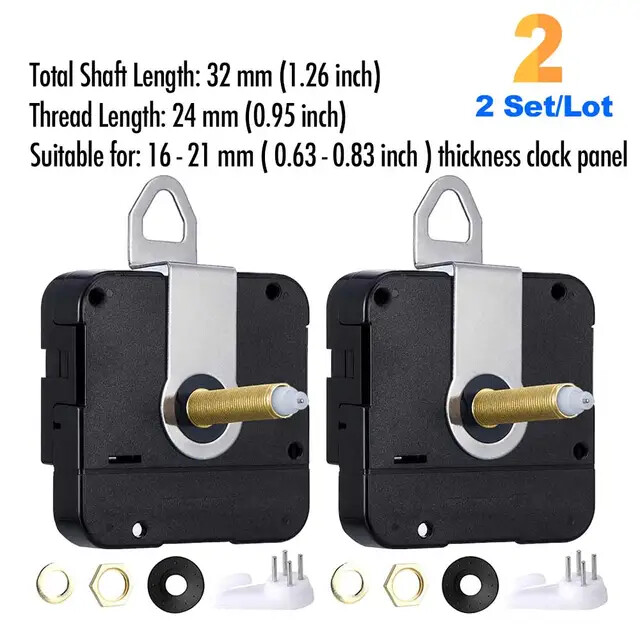

Total Shaft Length: 32 mm (1.26 inch)
Thread Length: 24 mm (0.95 inch)
Suitable for: 16 - 21 mm ( 0.63 - 0.83 inch ) thickness clock panel
Shaft Length and Thread length is different
Please make sure that you understand correctly and make the correct choice carefully before purchase.
If you don't know what shaft diameter is, please refer to the picture below
Hour Hand Shaft Diameter: 5.5 mm / 0.22 inch
Minute Hand Shaft Diameter: 3.7 mm / 0.15 inch
Second Hand Shaft Diameter: 0.86 mm / 0.03 inch
Thread Diameter: 7.6 mm / 0.3 inch
Snap In Type Clock Movement, with no thread
Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook
How to Get the Right Replacement
We have 8 different clock movements.
They have the same shaft diameter.
But their shaft length are different.
If you don't know what the shaft length and shaft diameter are, please refer to the picture above.
Why choose MCDFL clock movement?
2 set/lot high precision clock movement kit meet your small batch needs.
You can pick out suitable shaft length clock mechanism to keep your favorite clocks running at no additional charge.
With MCDFL quartz clock mechanism kit that provides a quick and easy fix for your clock, gift choice for clockmaker lover. Perfect DIY clock kit, clock home parts accessories.
Package Included:
2 x Quartz clock movement
2 x Rubber gasket
2 x Brass washer
2 x Brass hex nut
2 x Metal hook
2 x Mounting hook
(for Snap In Type Clock Movement, with no thread.
Please note that our package does not include the plastic washer, brass washer, brass nut, metal hook and mounting hook)
Installation Steps
1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dail fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 position.
7. Place minute hand over shaft at 12:00 position.
8. Gently screw minute nut in place.
Snap in Type Clock Movement
Installation Steps
1.Insert shaft through hole in clock surface.
2.Gently press hour hand onto shaft at 1 2:00 position.
3.Gently press minute hand onto shaft at 12:00 position
4.Press on second hand at 12:00 position.
Notes:
- please check the size before buying.
- Please peel off the resist film of the clock hands.
- Be careful not to bend the hands with too much pressure.
- When you install them, please keep the hour hand and minute hand parallel
- Do not tighten the brass hex nut too tight
- Press hard to get all clock hands in place
- Please do not use Alkaline battery, rechargeable battery, or they will damage the clock movement.
The pointers are made of thin aluminum or iron plate after one time punch, although the packaging is good, but still can not avoid being bent during long-distance transportation. If it occurs the situation, please slightly smooth it straight by fingers. It doesn't affect usage.
The installation of pointers is skillful. Three needles should be installed separately and do not overlap as much as possible. Otherwise it will affect the performance that these pointers may not walk. Please read the notes carefully before your purchase.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you.
About Battery
Please Do Not use a battery more than 1.5V or a high electric current battery, such as a rechargeable battery.
The Best Option is a Carbon, Alkaline Battery or a low electric current battery (less than 500 ma)
Why we should use Carbon, Alkaline Batteries or low electric current batteries on most of home clocks?
Most of clocks only need very low electric current, especially for quartz clock for home. If use a high electric current battery such as
a rechargeable battery, it may damage the clock movement, cause inaccurate time, or even burn out the clock movement, affecting the service life.
